Mesh Form Snap Tie


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Mesh Form Snap Tie is deigned for used in one sided forming with wood forming in cast in place applications. The Mesh Form Snap Ties are typically used with OCM Mesh Form.

Features

  • Excellent choice for blind sided forming with Mesh Form.
  • Shipped with Mesh Form Clips ready to use.
  • Available in 8" wall and above with custom end sizes.
  • Available in Loop Tie and Speed Lock Tie versions.
OCM Part No. Wall Size End Size Packaging Weight lbs Safe Working Load lbs
Varies 8" 8-1/4" 100 40 1,875
10" 8-1/4" 100 44
12" 8-1/4" 100 46
14" 8-1/4" 100 48
16" 8-1/4" 100 50
18" 8-1/4" 100 52
20" 8-1/4" 100 54
24" 8-1/4" 100 60

SWL provides a safety factor of approximately 2 to 1.

Easy Installation Instructions:

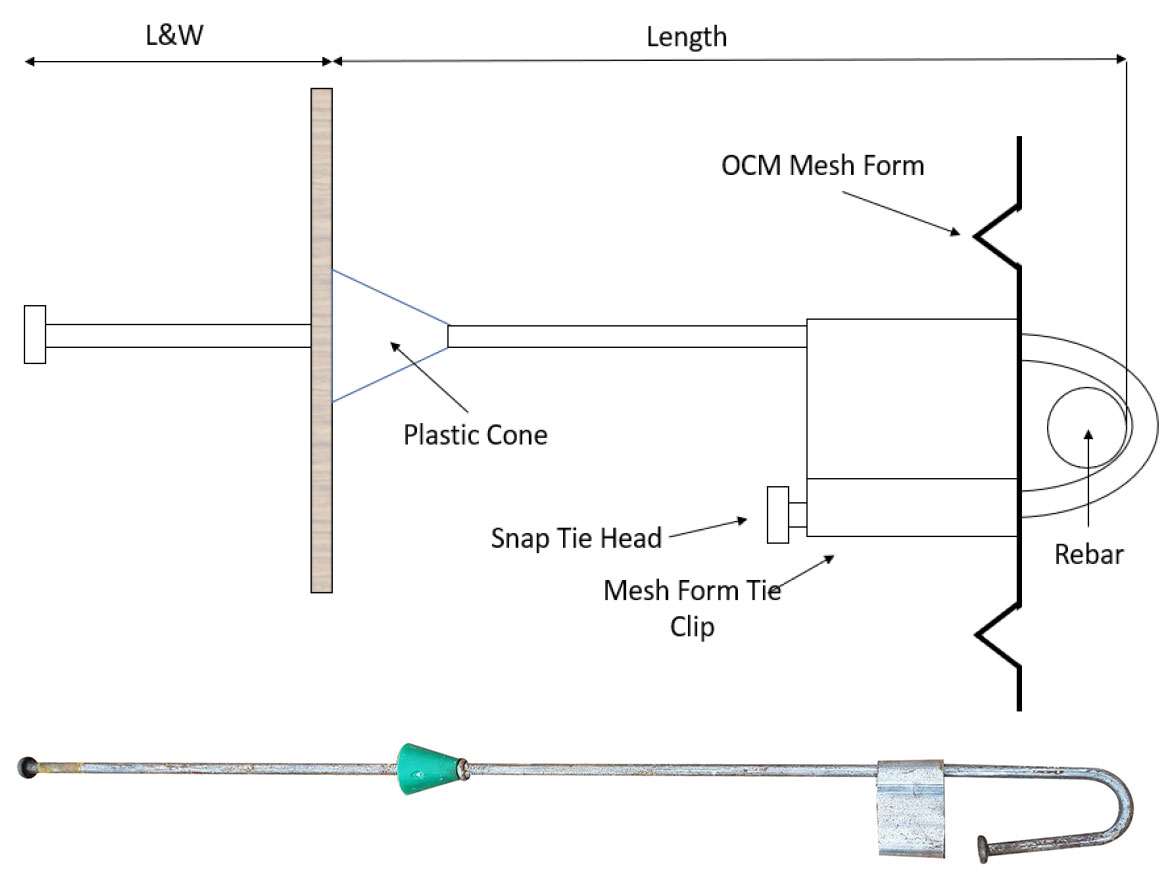

The Mesh Form Clip should be moved up away from the Snap Tie end. The hook end is than inserted through a precut slit in the Mesh Form and positioned around rebar. The Mesh Form Clip is then slid down the tie and positioned behind the head as shown above. Ensure the Tie Head is secured on the edge of the tie clip to prevent the tie from coming loose.
