Pro Chairs


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

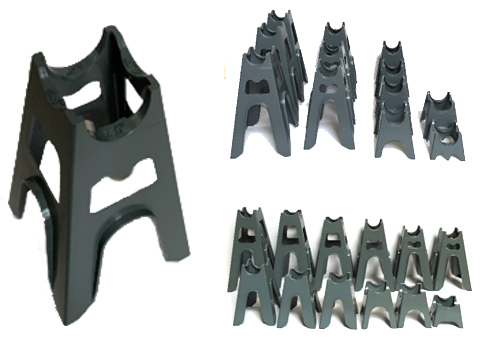

OCM, Inc's Pro Chairs are made with high performance, high strength polymer composite material that won't rust. The cradle shaped head will provide aid in positioning rebar. The 2-in-1 cradle head allows for one Pro Chair to be used for two different heights, reducing the amount of inventory you need to take on.

Features

  • Made with high performance, high strength polymer composite to withstand extreme temperatures and support very heavy loads.
  • Made in the USA to meet all Federal BABA and State DOT requirements.
  • The 2-in-1 dual height cradle allows for rebar positioning at 2 different heights and reduces inventory in half.
  • Greater stackability provides for smaller boxes, less inventory space, and more compact shipments.
  • Reduced labor—easier to carry and place more Pro Chairs at a time vs any other chair in the market.
  • Tapered foot design for minimal surface contact on wood decks, in tilt-up panels, and in precast steel forms.
OCM Alt. Part No. Description Part Height Carton Qty Weight Each lbs
PHC1-1.5-PRO POLYMER COMPOSITE PRO CHAIR - 1" - 1-1/2" - 500/BOX - 18000/SKID 1" - 1-1/2" 500 0.0406
PHC1.25-1.75-PRO POLYMER COMPOSITE PRO CHAIR - 1-1/4" - 1-3/4" - 500/BOX - 16000/SKID 1-1/4" - 1-3/4" 500 0.0506
PHC2-2.5-PRO POLYMER COMPOSITE PRO CHAIR - 2" - 2-1/2" - 250/BOX - 9000/SKID 2" - 2-1/2" 250 0.0606
PHC2.25-2.75-PRO POLYMER COMPOSITE PRO CHAIR - 2-1/4" - 2-3/4" - 250/BOX - 9000/SKID 2-1/4" - 2-3/4" 250 0.0631
PHC3-3.5-PRO POLYMER COMPOSITE PRO CHAIR - 3" - 3-1/2" - 300/BOX - 8400/SKID  3" - 3-1/2" 300 0.0944
PHC3.25-3.75-PRO POLYMER COMPOSITE PRO CHAIR - 3-1/4" - 3-3/4" - 300/BOX - 8400/SKID 3-1/4" - 3-3/4" 300 0.1013
PHC4-4.5-PRO POLYMER COMPOSITE PRO CHAIR - 4" - 4-1/2" - 200/BOX - 5600/SKID 4" - 4-1/2" 200 0.1275
PHC4.25-4.75-PRO POLYMER COMPOSITE PRO CHAIR - 4-1/4" - 4-3/4" - 200/BOX - 4800/SKID 4-1/4" - 4-3/4" 200 0.1425
PHC5-5.5R-PRO POLYMER COMPOSITE PRO CHAIR - 5" - 5-1/2" W/RING - 200/BOX - 4800/SKID 5" - 5-1/2" 200 0.1525
PHC5.25-5.75R-PRO POLYMER COMPOSITE PRO CHAIR - 5-1/4" - 5-3/4" W/RING - 200/BOX - 4800/SKID 5-1/4" - 5-3/4" 200 0.1581
PHC6-6.5R-PRO POLYMER COMPOSITE PRO CHAIR - 6" - 6-1/2" W/RING - 100/BOX - 3200/SKID  6" - 6-1/2" 100 0.1831
PHC6.25-6.75R-PRO POLYMER COMPOSITE PRO CHAIR - 6-1/4" - 6-3/4" W/RING - 100/BOX - 2800/SKID 6-1/4" - 6-3/4" 100 0.1888
PHC7-7.5R-PRO POLYMER COMPOSITE PRO CHAIR - 7" - 7-1/2" W/RING - 100/BOX - 2400/SKID 7" - 7-1/2" 100 0.2075
PHC7.25-7.75R-PRO POLYMER COMPOSITE PRO CHAIR - 7-1/4" - 7-3/4" W/RING - 100/BOX - 2800/SKID 7-1/4" - 7-3/4" 100 0.2138

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
