Unichair ® Rebar Support - Patent Pending


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

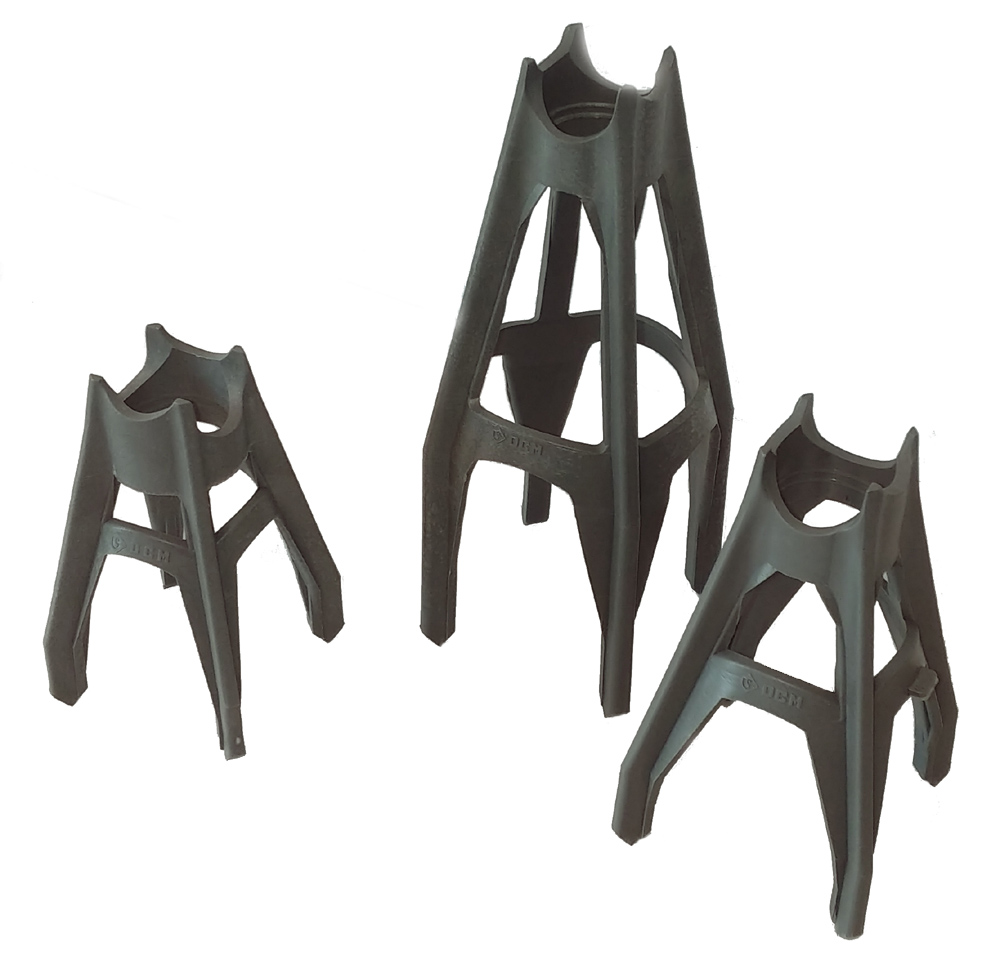

The Unichair ® Polymer Composite Rebar Support (Patent Pending) is an all purpose individual high chair ideal for use on wood, steel, and concrete. It is also well suited for TILT-UP applications. They have been tested and approved for Department of Transportation(D.O.T) use.

Features

  • The OCM Unichair ® Polymer Composite Rebar Support (Patent Pending) has an open center which allows concrete to flow through the center of the chair to improve aggregate flow and concrete consolidation.
  • Made from high strength polymer composite material, so they perform very well under normal loads and will not rust.
  • They have angled legs to prevent torsion and buckling.
  • Sizes above 4 3/4" have an added ring for improved strength and stability.
  • Feet are tapered so there is minimum surface contact to make chairs virtually disappear when form face is stripped. Legs can also be stapled for added stability.
  • Cradle shaped top to aid in positioning of rebar.
  • Concrete gray color helps them to blend in with concrete color.
  • Dual cradle head allows for 1 chair to be used for 2 different heights. Decreases amount of inventory, and increases flexibility for use of each chair.
OCM Part No. Height Box Qty
PHC.75-.75 3/4" - 3/4" 1,000
PHC1-1.5 1" - 1.5" 500
PHC1.25-1.75 1.25" - 1.75" 500
PHC2-2.5 2" - 2.5" 250
PHC2.25-2.75 2.25" - 2.75" 250
PHC3-3.5 3" - 3.5" 300
PHC3.25-3.75 3.25" - 3.75" 300
PHC4-4.5 4" - 4.5" 200
PHC4.25-4.75 4.25" - 4.75" 200
PHC5-5.5R 5" - 5.5" 200
PHC5.25-5.75R 5.25" - 5.75" 200
PHC6-6.5R 6" - 6.5" 100
PHC6.25-6.75R 6.25" - 6.75" 100
PHC7-7.5R 7" - 7.5" 100
PHC7.25-7.75R 7.25" - 7.75" 100
PHC8-8.5R 8" - 8.5" 100
PHC8.25-8.75R 8.25"- 8.75" 100
PHC9-9.5R 9"- 9.5" 100
PHC9.25-9.75R 9.25" - 9.75" 100

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.

OCM, Inc.

1120 E. Peterson Road, Grayslake, IL 60030
Toll Free: 866-457-5710 • Phone: 847-462-4258 • FAX: 847-462-4259
[email protected]
