Cradle Chair (PCC)


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

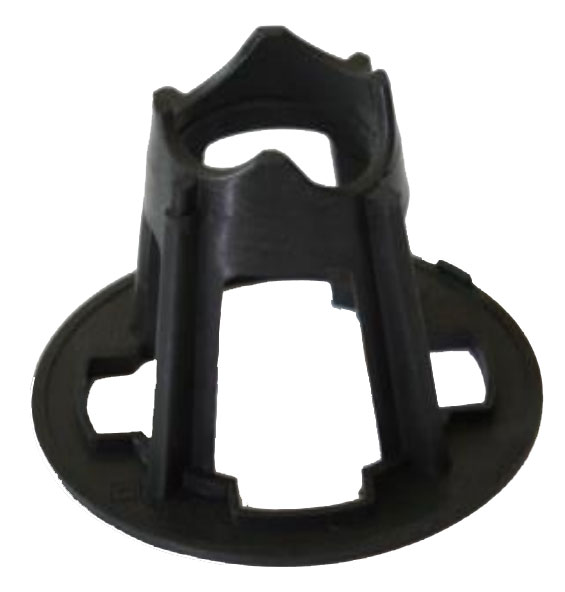

OCM Polymer Composite Cradle Chair may be used to support mesh or rebar in many applications requiring heavy load capacity. Common applications include slab on grade, insulated sandwich panels, vapor barrier, and on poorly compacted or loose soils. OCM Polymer Composite Cradle Chairs meet current CRSI requirements.

Features

  • Excellent strength capacity - Holds over 600 lbs.
  • Cradle will accommodate up to #8 re-bar.
  • Multiple heights - 2 heights per chair.
  • Will not puncture vapor barrier or insulation.

Additional Photos

Product 1
OCM Part No. Height Box Qty
PCC1.50-1.75 1.5" - 1.75" 300
PCC2.00-2.25 2.0" - 2.25" 480
PCC2.50-2.75 2.5" - 2.75" 350
PCC3.00-3.25 3.0" - 3.25" 288
PCC3.50-3.75 3.5" - 3.75" 288
PCC4.00-4.25 4.0" - 4.25" 200
PCC5.00-5.25 5.0" - 5.25" 100
PCC6.00-6.25 6.0" - 6.25" 100
Comments: * Verify your local approvals before use.
