Coil Thread Drop In Anchors


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

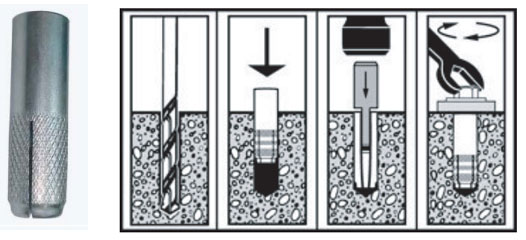

OCM Coil Thread Drop In Anchors are internally threaded Drop In Expansion Anchors used with either 1/2" or 3/4" Diameter Coil Rod, and are set in place by the use of the Setting Tool after the anchor is placed into the properly sized pre-drilled hole.

Features

  • Made from Carbon Steel
  • Makes One-Sided Forming easier
  • Coil Rod can be set into existing concrete quickly and easily
OCM Part No. D Size Drill Bit Size Must Use Box Weight per pcs lbs Safe Working Load lbs (For 2000 psi Concrete)
50CDIA 1/2" 5/8" 50 0.12 1,025
50CDIA-TOOL 1/2" - 1 0.4 -
75CDIA 3/4" 1" 25 0.5 2,145
75CDIA-TOOL 3/4" - 1 0.4 -
Comments: SWL provides a safety factor of apporoximately 2 to 1.
