Coil Nuts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Coil Nuts are made from high strength steel, and are used with different types of coil thread bolts and rods in concrete formwork, bridge deck forming, or precast concrete applications.

Features

  • Can be provided in different sizes from 1/2" to 1 1/2"
  • Standard is provided with Right Hand Thread, but left hand is also available
  • Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork

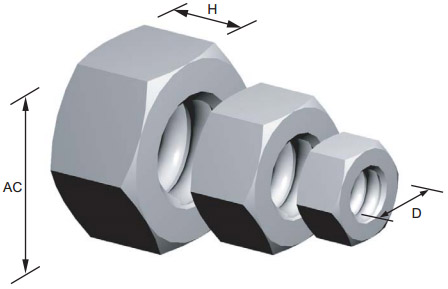

OCM Part No. D Size H Height AC Across Flats Box Qty Weight per 100pcs lbs Safe Working Load lbs
50ACCN0P 1/2" 0.484 0.863 500 6.2 6,000
50ACCN0P-G 1/2" 0.484 0.863 500 6.2 6,000
62SFCN 5/8" Finished 0.547 0.93 500 11.4 8,000
75SFCN 3/4" Finished 0.641 1.107 500 11.4 12,000
75SCCN0P 3/4" Heavy 0.734 1.231 250 17.8 12,000
87SCCN0P 7/8" 0.859 1.416 250 27.6 16,000
100SCCN0P 1" 0.984 1.6 150 15 24,000
125SCCN0P 1-1/4" 1.219 2.123 70 75.2 36,000
150CCCN 1-1/2" 1.50 2.375 40 129 47,500
Comments: SWL provides a safety factor of apporoximately 2 to 1. Two standard coil nuts of each size equal the strength of one heavy duty tall coil nut of the same size.
