Coil Bolts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Coil Bolts are made from high strength steel, and are used with different types of coil thread nuts and inserts in concrete formwork, bridge deck forming, or precast concrete applications.

Features

  • Standard sizes of 1/2" and 3/4" Diameter up to 6" length are readily available
  • Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork
  • Special sizes and lenghts can be fabricated upon request

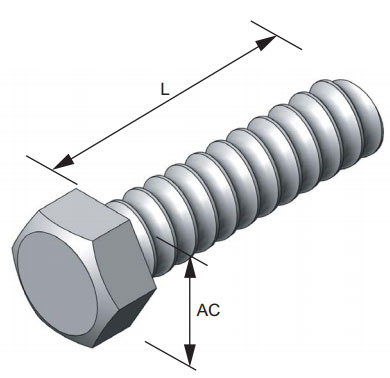

OCM Part No. D Size L Length AC Across Flats Carton Qty Weight per 100pcs lbs Safe Working Load lbs
50A150CBH0P 1/2" 1-1/2" 3/4" 500 10.6 4,125
50A200CBH0P 1/2" 2" 3/4" 500 12.8 4,125
50A250CBH0P 1/2" 2-1/2" 3/4" 400 15.1 4,125
50A300CBH0P 1/2" 3" 3/4" 300 17.1 4,125
50A350CBH0P 1/2" 3-1/2" 3/4" 250 19.4 4,125
50A400CBH0P 1/2" 4" 3/4" 250 21.6 4,125
50A500CBH0P 1/2" 5" 3/4" 200 26.3 4,125
50A600CBH0P 1/2" 6" 3/4" 150 30.7 4,125
75S200CBH0P 3/4" 2" 1-1/8" 150 32.8 9,000
75S250CBH0P 3/4" 2-1/2" 1-1/8" 150 39.4 9,000
75S300CBH0P 3/4" 3" 1-1/8" 100 42.7 9,000
75S350CBH0P 3/4" 3-1/2" 1-1/8" 100 47.8 9,000
75S400CBH0P 3/4" 4" 1-1/8" 100 52.5 9,000
75S500CBH0P 3/4" 5" 1-1/8" 75 62.5 9,000
75S600CBH0P 3/4" 6" 1-1/8" 75 72.4 9,000
62S200CBH0P 5/8" 2" 1" 100 21.8 7,500
62S400CBH0P 5/8" 4" 1" 100 35.4 7,500
Comments: SWL provides a safety factor of apporoximately 2 to 1.
