Heavy Duty Coil Nuts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Tall Coil Nuts are made from high strength steel, and are used with different types of coil thread bolts and rods in concrete formwork, bridge deck forming, or precast concrete applications.

Features

  • Can be provided in different sizes from 1/2" to 1 1/2"
  • Standard is provided with Right Hand Thread, but left hand is also available
  • Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork
  • Only 1 Tall Coil Nut is required to develop Ultimate Load when used with High Strength Coil Rod

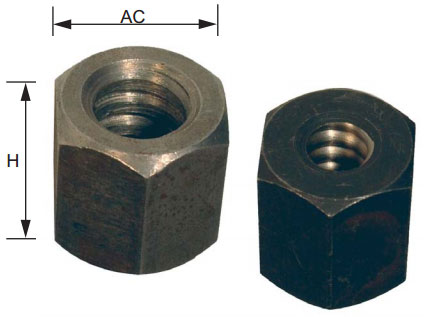

OCM Part No. D Size H Height AC Across Flats Box Qty Weight per 100pcs lbs Safe Working Load lbs
50ACCN0PT 1/2" 1-1/8" 1-5/16" 100 6.2 9,000
75SCCN0PT 3/4" 1-1/8" 1-5/16" 100 11.4 18,000
100SSCCN0PT 1" 2" 1-3/8" 100 11.4 37,500
125SSCCN0PT 1-1/4" 2-1/2" 1-7/8" 100 15 56,000
Comments: SWL provides a safety factor of apporoximately 2 to 1.
