2 Strut Conefast Coil Tie 1/2"


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

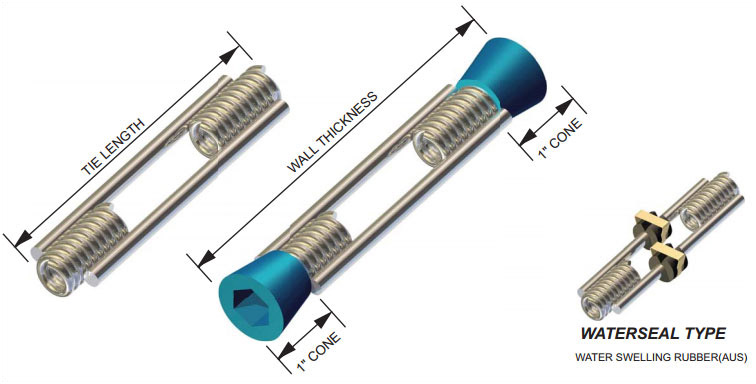

OCM Conefast Coil Ties are one of the most economical and versatile form tie systems available. They are commonly used with self cleaning Coil Rod or Coil Bolts. The Conefast coil Ties have extended coils that protrude beyond the end of the struts allowing for a Conefast (Screw On) Cone to be attached.

Features

  • When used with cones they will provide a setback of metal to reduce corrosion staining on finished wall
  • Can be provided as plain or mechanically galvanized
  • When used with cones can be used as combination tie and form spreader
  • Used for architectural walls, and can also be used without cones
OCM Part No. Wall Thickness (With 1” Setback) Tie Length Box Qty Weight / pcs lbs Safe Working Load lbs
CT5004SP 6 4 100 0.32 4,500 lbs.
CT5006SP 8 6 100 0.32 4,500 lbs.
CT5008SP 10 8 100 0.32 4,500 lbs.
CT5010SP 12 10 100 0.36 4,500 lbs.
CT5012SP 14 12 100 0.42 4,500 lbs.
CT5014SP 16 14 100 0.466 4,500 lbs.
CT5016SP 18 16 100 0.512 4,500 lbs.
CT5018SP 20 18 100 0.558 4,500 lbs.
CT5020SP 22 20 100 0.604 4,500 lbs.
CT5022SP 24 22 100 0.65 4,500 lbs.
CT5024SP 26 24 100 0.696 4,500 lbs.
CT5026SP 28 26 100 0.742 4,500 lbs.
CT5028SP 30 28 100 0.788 4,500 lbs.
CT5030SP 32 30 100 0.834 4,500 lbs.
CT5032SP 34 32 100 0.88 4,500 lbs.
CT5034SP 36 34 100 0.926 4,500 lbs.
CT5036SP 38 36 100 1 4,500 lbs.
CT5042SP 44 42 100 1.1 4,500 lbs.
Comments: **Additional lengths available upon request. **Waterseal available upon request. -SWL provides a safety factor of approximately 2 to 1.
