Euro Thread Weld Angle Bracket


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Weld Angle Brackets are designed to tie one-sided forming to steel piles, metal beams, weld plates, etc. The pivot pin is furnished with Coil Thread or Euro Thread. The OCM Weld Angle Bracket allows the form tie a pivot range of 110° (55° each direction), and will exceed the tensile capacity of the form tie when properly installed by a certified welder.

Features

  • Available in Coil or Euro Thread
  • Makes One-Sided Forming easier and safer when installled by a certified welder
  • Allows for 110° (55° each direction) of pivot range

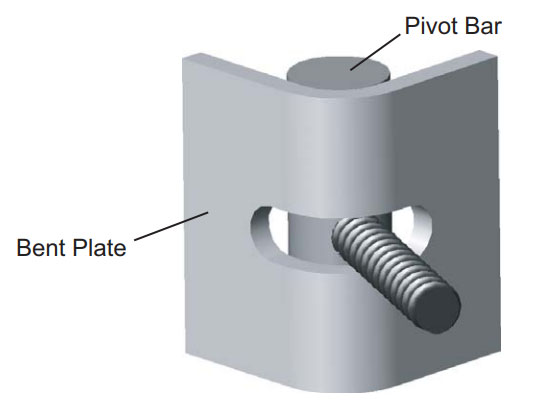

  OCM Part No. D Size Weight per pcs lbs Safe Working Load lbs
Pivot Bar 62APBP 5/8" (15mm) 2.15 22,400
87APBP 7/8" (20mm)  2.10  39,200
Bent Plate AWB24-1 5/8" (15mm) 1.90 9,000
AWB24-2 7/8" (20mm) 1.90 18,000
Comments: SWL provides a safety factor of approximately 2 to 1.

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.

OCM, Inc.

1120 E. Peterson Road, Grayslake, IL 60030
Toll Free: 866-457-5710 • Phone: 847-462-4258 • FAX: 847-462-4259
