Euro Spacer/Slip Tie Cone


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

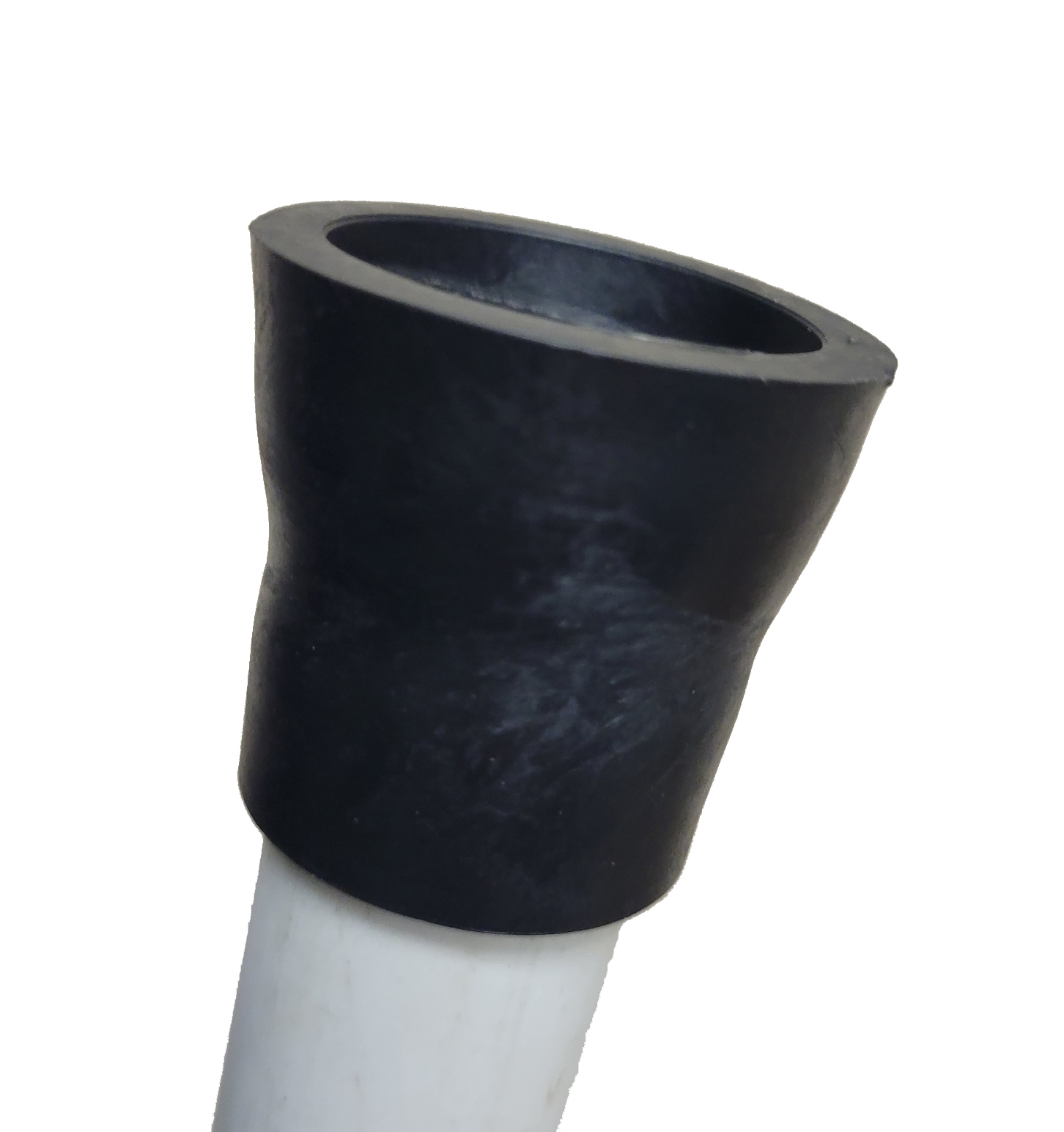

The Polymer Composite Euro Spacer/Slip Tie Cone is placed over the ends of schedule 40 pvc pipe to enable Euro Rod to pass through the formwork during setup and be removed during the form stripping process for later reuse.

Features

  • Available in 15mm (5/8”) and 20mm (7/8”).
  • Provides a snug fit to prevent slippage during use.
  • Creates a proper setback in the wall for easy patching.
  • Uses 3/4” schedule 40 pvc pipe for 5/8” cones and uses 1” schedule 40 pvc pipe for 7/8” cones.
OCM Part No. Description Quantity
ERCONE62-SLIP TIE 5/8" (15MM) Polymer Composite Spacer Cone/Slip Tie Cone 200/Bag, 1000/Box
ERCONE87-SLIP TIE 7/8" (20MM) Polymer Composite Spacer Cone/Slip Tie Cone 200/Bag, 1000/Box

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
