Description

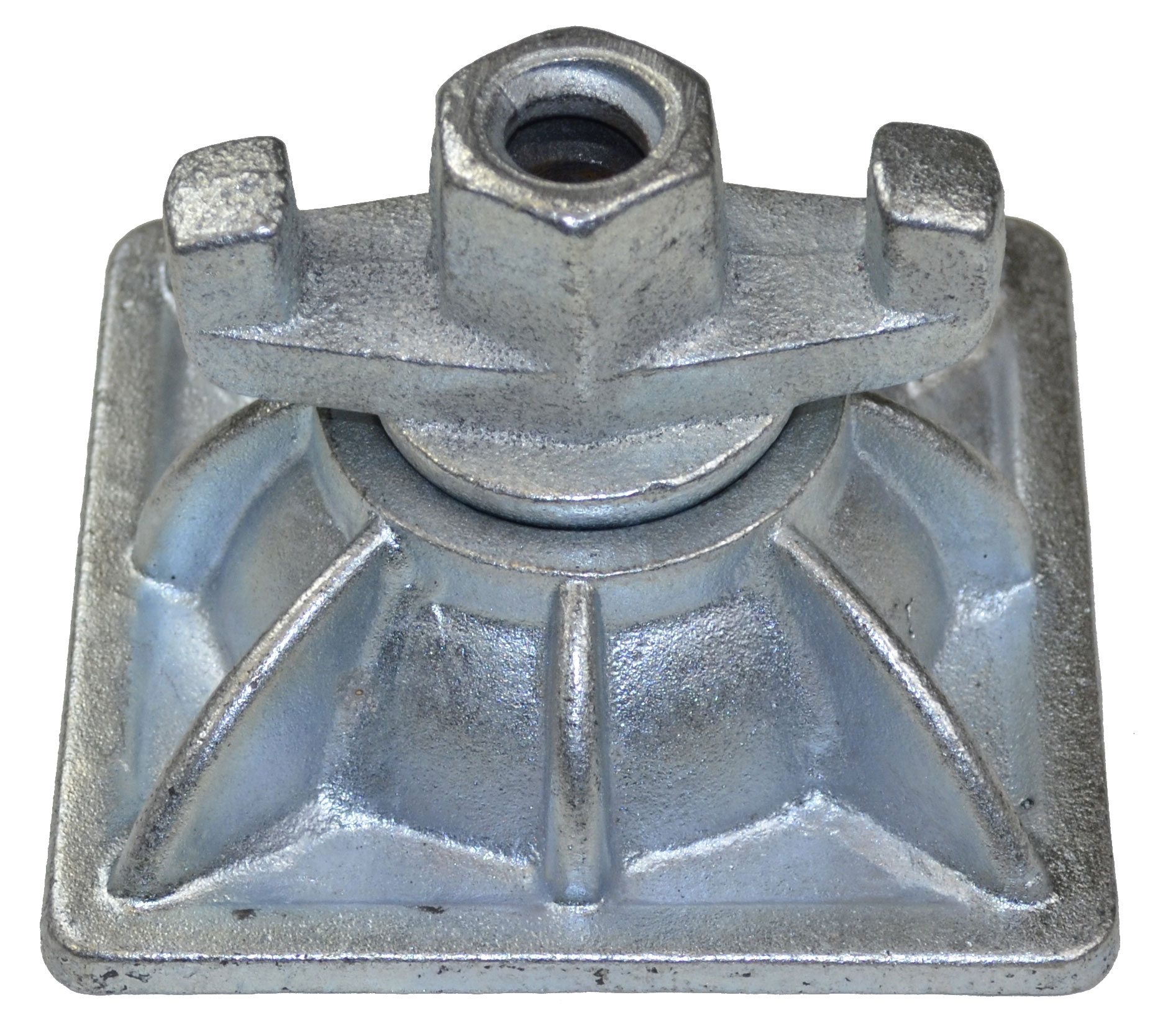

Combination Plates consist of a undetachable waler plate and a forged wing nut that are articulated (max. 5°). The load capacity for wood and steel walings corresponds to the values of the base plates.
Features
- Galvanized for longer Life
- Cast Nut and Washer
| OCM Part No. | Size | Washer Size | Weight | Safe Work Load |
|---|---|---|---|---|
| ERCP15 | 5/8"/15mm | 120mm sq | 2.78 lbs /ea | 21,900 lbs |
| ERCP20 | 7/8"/20mm | 120mm sq | 2.78 lbs /ea | 39,200 lbs |
Comments: Safe working reflects 2:1 Safety factor.
