Fitting Up (Speed) Bolts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Fitting Up (Speed) Bolts are used for securing steel form panels together. The tapered nose of the bolt acts as a draft pin and helps align the forms. The thread design and clearances between the nut and bolt permits quick assembly and dismantling of the forms. The open thread design permits concrete to be easily knocked out of the threads.

Features

  • Available in several different lengths
  • Custom lengths are available
  • Heat Treated for extended durability
  • 2" size is full threaded for added versatility

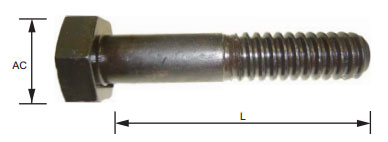

OCM Part No. D Size L Length AC Across Flats Thread Length Carton Qty Weight per pc lbs Grade
75F200FUBP 3/4" 2" 1.25" Full 125 0.37 ASTM A325
75F300FUBP 3/4" 3" 1.25" Full 75 0.5 ASTM A325
75F400FUBP 3/4" 4" 1.25" 3" 75 0.62 ASTM A325
75F500FUBP 3/4" 5" 1.25" 3" 50 0.75 ASTM A325
75F600FUBP 3/4" 6" 1.25" 3-1/8" 50 0.85 ASTM A325
