Description

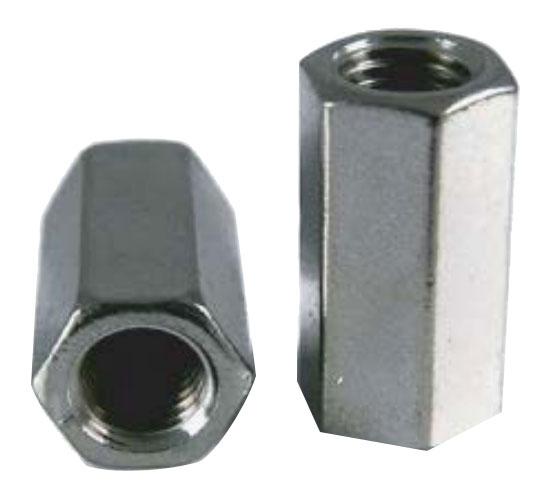

OCM, Inc's Euro Rod Hex Couplers are a high strength steel, thread accessory.
Features
- 15mm or 20mm.
- 2-1/2 threads per 1".
- Positive stop inside the 100mm couplers.
- No positive stop inside the 50mm couplers—continuously thread onto adjacent bars to couple them together.
| OCM Part No. | Size Inch | Length | Weight per pcs lbs | Safe Working Load lbs |
|---|---|---|---|---|
| ERSHC15 | 5/8" (15mm) | 50mm | 0.42 | 21,900 |
| ERLHC15 | 5/8" (15mm) | 100mm | 0.84 | 21,900 |
| ERSHC20 | 7/8" (20mm) | 50mm | 0.75 | 39,200 |
| ERLHC20 | 7/8" (20mm) | 100mm | 1.50 | 39,200 |
Comments: SWL provides a safety factor of approximately 2 to 1.
