Description

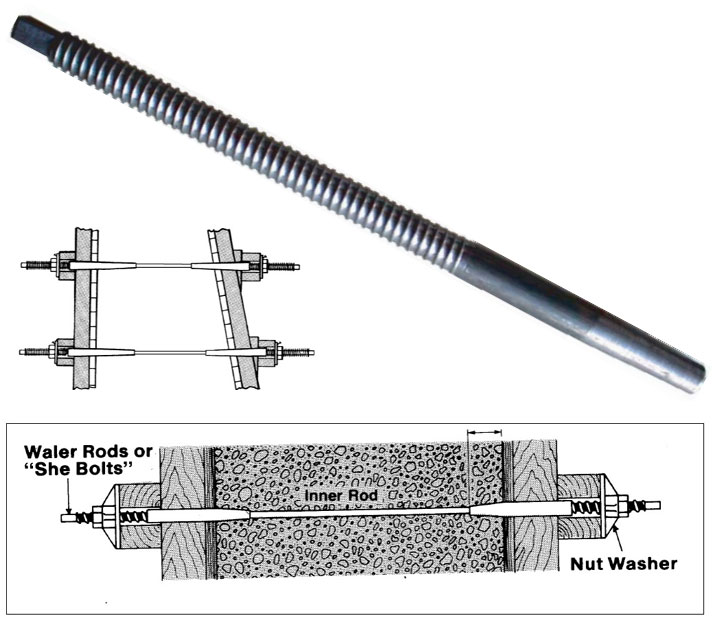

OCM Inc. She-Bolts are heavy duty, reusable form ties for medium and heavy concrete construction. They are used with Inside Rods or Coil Rod that can be cut in the field to any desired length based on form thickness that is required.
She-Bolts are meant to be reused, but they do wear so they must be continually inspected. When wear or damage is noted, they must be replaced.
A water-proof grease should be applied to the embedded portion of the she-bolt to facilitate removal.
Features
- Reusable form ties (inside rod needs replacing each time).
| OCM Part No. | She Bolt External Thread | Inside Tie Rod Thread | Overall Length | Safe Working Load lbs |
||
|---|---|---|---|---|---|---|
| Diameter | Type | Diameter | Type | |||
| SB7550-17ACME | 3/4" | Acme | 1/2" | NC | 17" | 9,000 |
| SBA7550-20P | 3/4" | Acme | 1/2" | Coil | 20" | 9,000 |
| SB7550-17P | 3/4" | Coil | 1/2" | Coil | 17" | 9,000 |
| SB7550-24P | 3/4" | Coil | 1/2" | Coil | 24" | 9,000 |
| SB7550-20P | 3/4" | Coil | 1/2" | Coil | 20" | 9,000 |
| SB12575-18P | 1-1/4" | Coil | 3/4" | Coil | 18" | 18,000 |
| SB12575-20 | 1-1/4" | Coil | 3/4" | Coil | 20" | 18,000 |
| SB12575-24P | 1-1/4" | Coil | 3/4" | Coil | 24" | 18,000 |
| SB12575-30 | 1-1/4" | Coil | 3/4" | Coil | 30" | 18,000 |
| SB150100-20P | 1-1/2" | Coil | 1" | Coil | 20" | 37,500 |
| SB150100-24P | 1-1/2" | Coil | 1" | Coil | 24" | 37,500 |
| SB150100-30P | 1-1/2" | Coil | 1" | Coil | 30" | 37,500 |
Comments: SWL provides a safety factor of approximately 2 to 1.
