Description

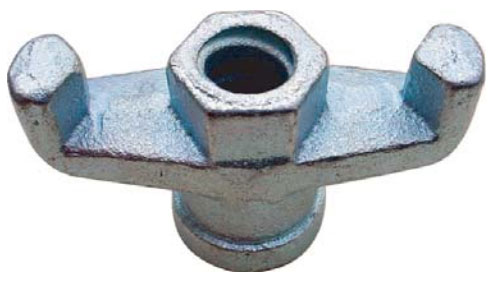

OCM, Inc's Euro Rod Single Wing Nuts are made to fit the Euro Rod system. Safe Working Capacity - 21,900lbs; Size - 90mm x 60mm.
Features
- Galvanized for longer life.
- 2-1/2 threads per inch.
| OCM Part No. | Size Inch | Dimension (W x H) | Weight per pcs lbs | Safe Working Load lbs |
|---|---|---|---|---|
| ERSWN15 | 5/8" (15mm) | 90mm x 60mm | 0.75 | 21,900 |
| ERSWN20 | 7/8" (20mm) | 90mm x 60mm | 2.40 | 39,200 |
Comments: SWL provides a safety factor of approximately 2 to 1.
