Pipe Braces


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

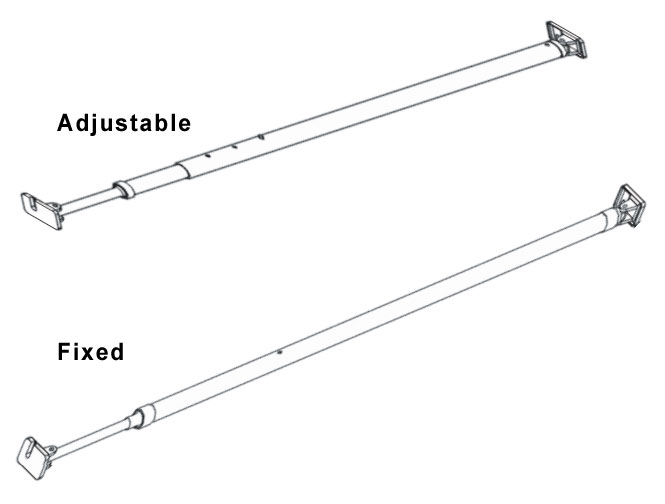

OCM, Inc's Pipe Braces are used for formwork, precast, and tilt-up bracing applications. Choose from 3 types of pipe braces; standard, heavy duty, and long heavy duty.

Features

  • Made from high strength steel.
Adjustable Braces
OCM Part No. Type Brace Length Weight lbs Ultimate Brace Load w/o Knee Bracing—Maximum lbs
PB-01 Standard 7'-6"(MIN.) to 14'-0"(MAX) 95.0 9,750/6,600
PB-04 Heavy Duty 14'-0"(MIN.) to 23'-6"(MAX) 130.0 9,750/3,200
PB-05 Long Heavy Duty 22'-6"(MIN.) to 39'-0"(MAX) 208.0 9,750/Not Recommended



Fixed Braces
OCM Part No. Type Brace Length Weight lbs Ultimate Brace Load w/o Knee Bracing—Maximum lbs
PB-08 Standard 21'-3"(MIN.) to 22'-9"(MAX) 136.0 6,500
PB-09 w/ 5ft Extension 26'-3"(MIN.) to 27'-9"(MAX) 188.0 4,800
PB-10 w/ 10ft Extension 31'-3"(MIN.) to 32'-9"(MAX) 224.0 3,600
PB-17 Standard  16'-6"(MIN.) to 17'-6"(MAX)  105.0   6,500
PB-EXT5 -F 5 ft Extension Only 5'-0"(MIN.) to N/A(MAX)   23.0  N/A
PB-EXT10-F 10 ft Extension Only 10'-0"(MIN.) to N/A(MAX)   46.0  N/A
PB-EC Extension Coupler  4'-0"(MIN.) to N/A(MAX)   42.0  N/A



Heavy Duty Braces - 5.5" Diameter
OCM Part No. Type Brace Length Weight lbs Ultimate Brace Load w/o Knee Bracing—Maximum lbs
PB-11 Heavy Duty 31'-0"(MIN.) to 32'-6"(MAX) 295.0 13,500
PB-13 w/ 5 ft Extension 36'-6"(MIN.) to 37'-6"(MAX) 360.0 12,000
PB-14 w/ 10 ft Extension 41'-6"(MIN.) to 42'-6"(MAX) 400.0 8,040
PB-15 w/ 20 ft Extension 51'-6"(MIN.) to 52'-6"(MAX) 520.0 5,775

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
