Inside Corners


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

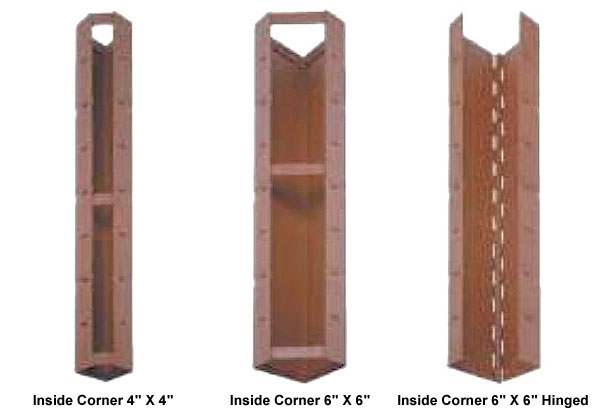

OCM INC's Inside corners have dadoes and slots that are placed every 12" O.C. for tie and connection hardware. Standard 4x4 or 6x6 Inside Corners are used to form a 90° angle, and manufactured with reinforcing straps to maintain a 90° angle. Inside Hinged Corners are typically used opposite of outside hinged corners and are used to form inside corners down to a 45° angle.

Features

  • Standard 4x4 or 6x6 Inside Corners are manufactured with reinforcing straps to maintain 90°.
  • Dadoes and slots are placed every 12" O.C. for tie and connection hardware.
  • Standard 4x4 or 6x6 Inside Corners are used to form 90° angle.
  • Inside Hinged Corners are used to form inside corners down to a 45° angle.
  • Inside Hinged Corners are typically used opposite of outside hinged corners.
  • 9FT. available upon request
Inside Corner 4" X 4" Standard
OCM Part No. Description Weight lbs Box Qty
IC44-3F INSIDE CORNER - STANDARD - 4" X 4" - 3' TALL 17.60 1
IC44-4F INSIDE CORNER - STANDARD - 4" X 4" - 4' TALL 23.54 1
IC44-5F INSIDE CORNER - STANDARD - 4" X 4" - 5' TALL 29.48 1
IC44-6F INSIDE CORNER - STANDARD - 4" X 4" - 6' TALL 35.20 1
IC44-8F INSIDE CORNER - STANDARD - 4" X 4" - 8' TALL 47.30 1
IC44-9F INSIDE CORNER - STANDARD - 4" X 4" - 9' TALL 53.06 1



Inside Corner 6" X 6" Standard
OCM Part No. Description Weight lbs Box Qty
IC66-3F INSIDE CORNER - STANDARD - 6" X 6" - 3' TALL  23.10 1
IC66-4F INSIDE CORNER - STANDARD - 6" X 6" - 4' TALL 31.02 1
IC66-5F INSIDE CORNER - STANDARD - 6" X 6" - 5' TALL 39.18 1
IC66-6F INSIDE CORNER - STANDARD - 6" X 6" - 6' TALL 46.49 1
IC66-8F INSIDE CORNER - STANDARD - 6" X 6" - 8' TALL 62.04 1
IC66-9F INSIDE CORNER - STANDARD - 6" X 6" - 9' TALL 69.74 1



Inside Corner 6" X 6" Hinged
OCM Part No. Description Weight lbs Box Qty
IC66-3H INSIDE CORNER - HINGED - 6" X 6" - 3' TALL 26.84 1
IC66-4H INSIDE CORNER - HINGED - 6" X 6" - 4' TALL 35.86 1
IC66-5H INSIDE CORNER - HINGED - 6" X 6" - 5' TALL 44.66 1
IC66-6H INSIDE CORNER - HINGED - 6" X 6" - 6' TALL 53.68 1
IC66-8H INSIDE CORNER - HINGED - 6" X 6" - 8' TALL 71.50 1
IC66-9H INSIDE CORNER - HINGED - 6" X 6" - 9' TALL 80.52 1
