Metal Filler


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

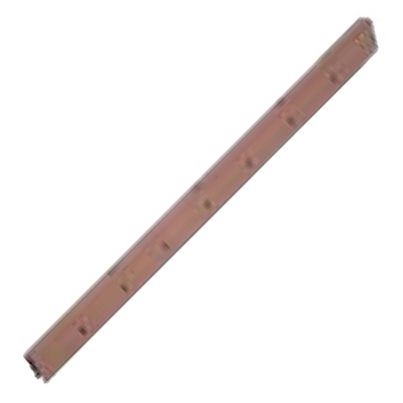

OCM, Inc's Metal Filler are made from cold formed u-shape sections and are available in 1", 1-1/2", and 2" width (available in 9FT upon request). Metal Fillers are compatible with other handset steel/plywood forming systems, and are used to attach two panels, or a panel and a corner of the poured wall.

Features

  • Metal Fillers are compatible with other handset steel/plywood forming systems.
  • Metal Fillers are made from cold formed u-shape sections and are available in 1", 1-1/2" and 2" width.
  • 9FT. available upon request.
1" Metal Filler for Steel Frame Form
OCM Part No. Description Weight lbs Box Qty
MF36X100 METAL FILLER - 3 ft (36") x 1"  8.32 1
MF48X100 METAL FILLER - 4 ft (48") x 1" 11.00 1
MF60X100 METAL FILLER - 5 ft (60") x 1" 13.86 1
MF72X100 METAL FILLER - 6 ft (72") x 1" 16.87 1
MF96X100 METAL FILLER - 8 ft (96") x 1" 22.18 1
MF108X100 METAL FILLER - 9 ft (108") x 1" 24.86 1



1-1/2" Metal Filler for Steel Frame Form
OCM Part No. Description Weight lbs Box Qty
MF36X150 METAL FILLER - 3 ft (36") x 1-1/2" 8.95 1
MF48X150 METAL FILLER - 4 ft (48") x 1-1/2" 11.95 1
MF60X150 METAL FILLER - 5 ft (60") x 1-1/2" 14.92 1
MF72X150 METAL FILLER - 6 ft (72") x 1-1/2" 17.91 1
MF96X150 METAL FILLER - 8 ft (96") x 1-1/2" 23.87 1
MF108X150 METAL FILLER - 9 ft (108") x 1-1/2" 26.86 1



2" Metal Filler for Steel Frame Form
OCM Part No. Description Weight lbs Box Qty
MF36X200 METAL FILLER - 3 ft (36") x 2" 9.68 1
MF48X200 METAL FILLER - 4 ft (48") x 2" 12.89 1
MF60X200 METAL FILLER - 5 ft (60") x 2" 16.13 1
MF72X200 METAL FILLER - 6 ft (72") x 2" 19.36 1
MF96X200 METAL FILLER - 8 ft (96") x 2" 25.81 1
MF108X200 METAL FILLER - 9 ft (108") x 2"  29.04 1

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
