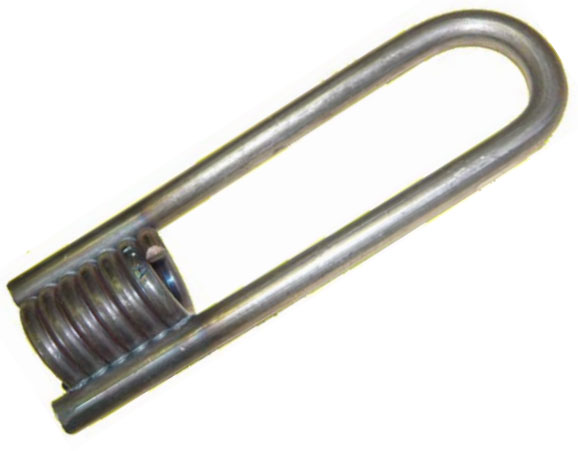

Straight Coil Loop Inserts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
Straight coil loop inserts are used in a lot of precast applications like lifting walls.

Features

  • Versatile and durable.
OCM Part No. Diameter Length Safe Working Load lbs
SCLI50X3P 1/2" 3" 2,250
SCLI50X4P 4" 2,250
SCLI50X6P 6" 3,750
SCLI75X4P 3/4" 4" 2,250
SCLI75X6P 6" 3,750
SCLI75X9P 9" 3,750
SCLI100X6P 1" 6" 3,750
SCLI100X8P 8" 3,750
Comments: SWL provides a safety factor of apporoximately 4 to 1.
