Dog Bone Lifting Anchor


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
Dog Bone Lifting Anchors are an economical, safe and effective method for lifting and transporting precast concrete units

OCM DB Lifting Eyes are matched with appropriate anchors to provide a proven method for use in back stripping or face lift applications.

Features

  • Manufactured by forging spherical ends with high strength steel in a controlled environment.

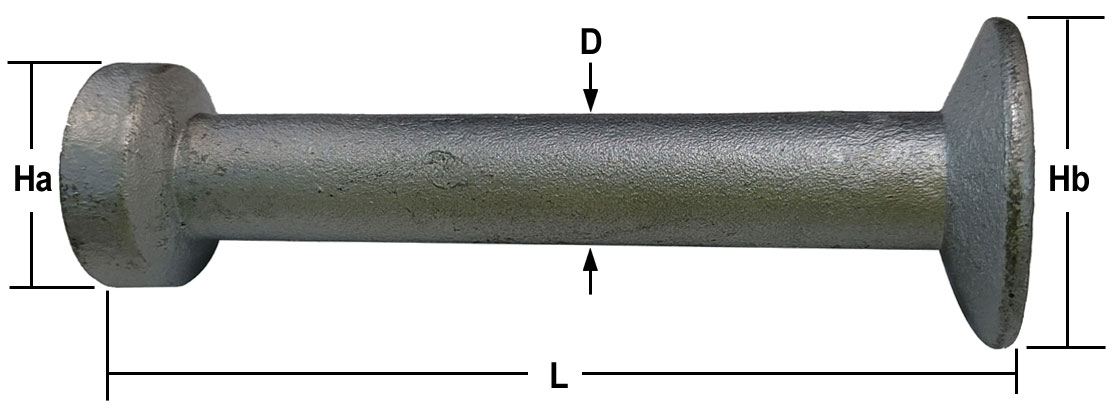

Safe Work Load OCM Lifting Eye Dimensions 4:1 swl (lbs) Ultimate Tensile Load (lbs)
Length Shaft Dia. D Head Dia. Ha Base Dia. Hb
mm in mm in mm in
1T 1-1.3T Varies 10 25/64" 19 3/4" 25 63/64" 2,100 8,400
2T 1.5-2.5T Varies 14 9/16" 26 1" 35 1-3/8" 4,400 17,600
4T 3-5T Varies 20 3/4" 36 1-13/32" 50 2" 8,800 35,200
8T 6-10T Varies 28 1-7/64" 47 1-27/32" 70 2-3/4" 17,600 70,400
16T 12-20T Varies 38 1-11/32" 70 2-3/4" 98 3-7/8" 35,200 140,800
25T 25-32T Varies 50 2" 88 3-1/2" 135 5-5/16" 55,000 220,000
Comments: 4:1 Approximate Safety Factor

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
