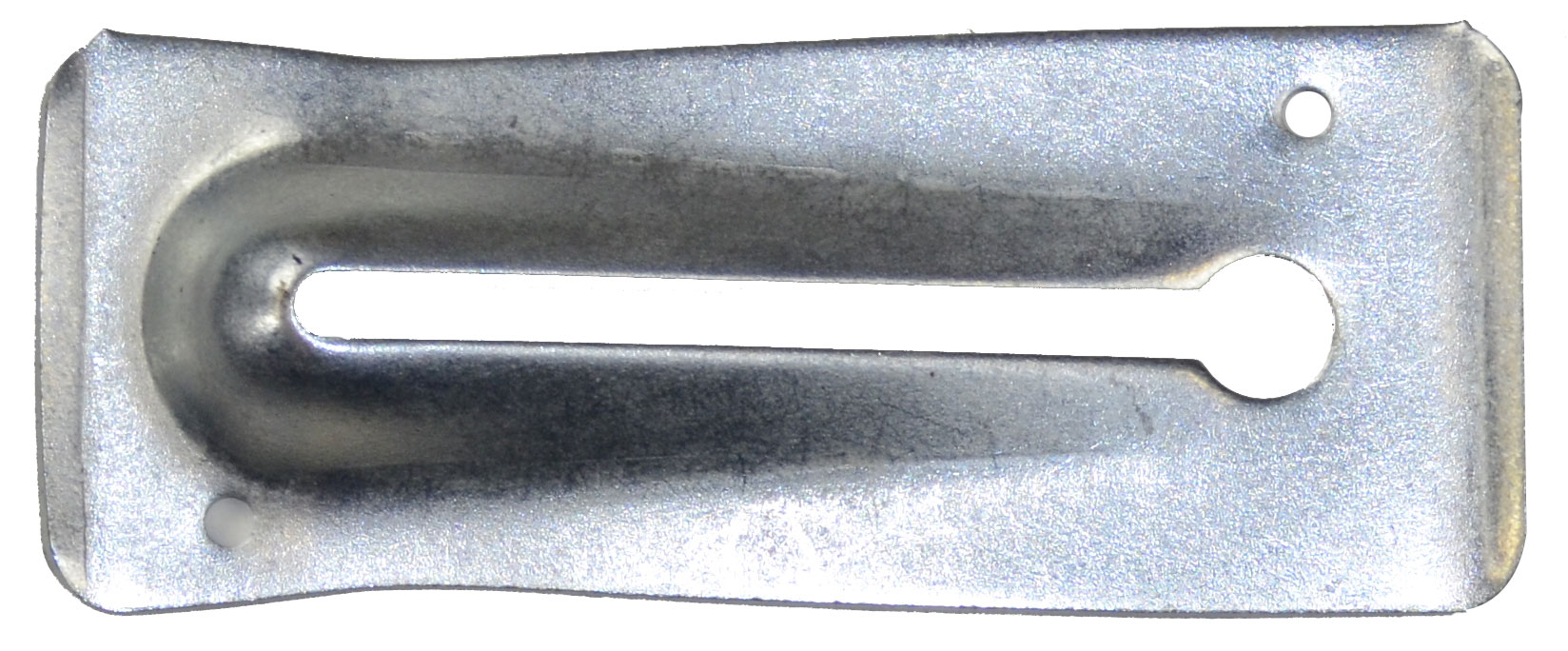

Snap Tie Wedge


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
The snap tie wedge is a holding device that is fabricated from high strength galvanized steel that is used in a double waler or double strong back snap tie forming application to ensure proper load distribution when installed correctly. The snap tie wedge acts as a tie holder that slides vertically down the tie just inside the tie head drawing up all of the form components until snug. Horizontal double walers and/or vertical double strongbacks must be positioned within 5/8” – ¾” of either side of the Tie and the snap tie wedge must bear evenly. The tie end must end up at the midpoint of the wedge or slightly higher.

Features

  • Made from high strength galvanized steel.
  • Ensures proper load distribution when applied correctly.
OCM Part No. Carton Qty Weight per pcs lbs Safe Working Load lbs
STWEGP 100 0.40 3,250
