Concrete Sleeves


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

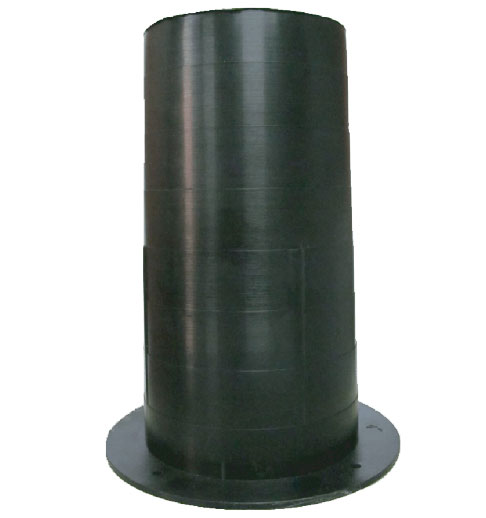

OCM, Inc’s Concrete Sleeves are used commonly on high rise structures to create a vertical pass through void for piping and conduit. They are injection molded from high strength, yet flexible, polyethylene. They save labor because they are tapered and can easily be removed after the forms have been stripped. OCM Concrete Sleeves may be telescoped or cut to accommodate any slab thickness and are easy to cut with a utility knife.

Features

  • Remove easily from slab due to tapered design.
  • Creates a smooth round hole every time.
  • Won't dent or bend.
  • Tapered at 1" increments for easy removal and cutting in the field.
OCM Part No. Weight lbs Diameter Height Box Qty
CS1.5X8 .115  1.5" 8.125" 224
CS2X8 .15  2" 8.125" 210
CS3X8 .26 3" 8.125" 100
CS4X8 .38 4" 8.125" 60
CS5X8 .41 5" 8.125" 45
CS6X8 .49 6" 8.125" 24
CS8X8 .65 8" 8.125" 20

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
