Heavy Duty Slab Grabber


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM, Inc's Heavy Duty Slab Grabber are used as guardrails that are fast, easy, and affordable. Made from high-strength galvanized steel; capable of withstanding at least 200 lbs. The Heavy Duty Slab Grabber meets FEDERAL OSHA 1926 502(B)(3) requirements.

Features

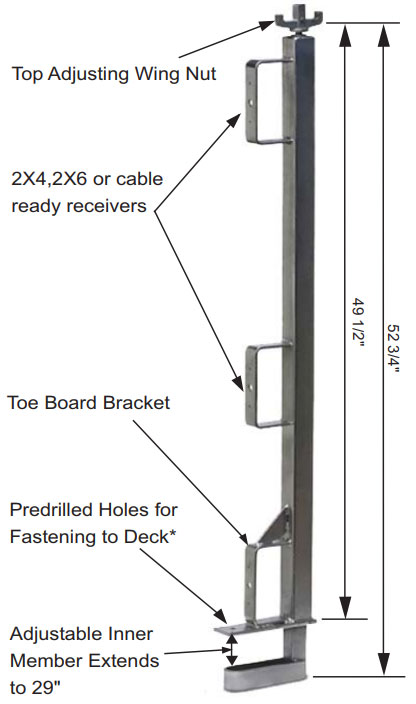

  • Quick adjust handle and rugged steel construction for fast attachment and construction for fast attachment and a positive grip on the slab
  • Bracket preinstalled to mount toe board when required or when surface slope is when required or when surface slope is more than 4/12 (vertical/horizontal) and if there is a risk of any type of work material to fall to a lower level
  • Adjustable for use on up to 29" slabs
  • Maximum spacing of 8 ft per OSHA spec
  • Height from top of slab to top of rail is 46"
  • Meets FEDERAL OSHA 1926 502(B)(3) requirements.
  • Capable of withstanding at least 200 lbs applied within 2" of the top edge, in any downward direction, at any point along the top edge.
OCM Part No. Description Weight lbs Skid
OCM-GRP-HD  Guard Rail Post Bracket - Heavy Duty Galvanized 26.00  200


*WARNING: Rail Post must be secured to deck with proper fasteners to ensure safety.
*WARNING: Use of equipment for unintended applications could result in serious injury or death.
                     NEVER make any connections to guardrail system.
*WARNING: NEVER lean or climb on guardrail systems.
