Screen Pads & Posts


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

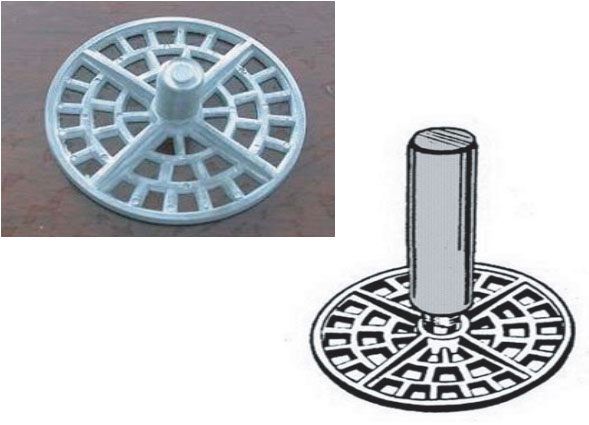

OCM, Inc's Screed Pads & Posts are used in paving projects and is used for screeding on concrete surfaces, metal/wood decking.

Features

  • Works best in plywood or steel decks.
  • Can be secured by construction adhesive, grout, or nails.
OCM Part No. Length Bundle Qty Weight Per Piece lbs
 Die Cast Screed Pads(3" Dia, 1/2" NC Thread) 100  0.160

SCRP08 8" 10 1.000
SCRP10 10" 10 1.250
SCRP12 12" 10 1.500
SCRP16 16" 10 2.000
SCRP18 18" 10 2.250
SCRP24 24" 10 3.000
SCRP30 30" 10 3.750
SCRP36 36" 10 4.500

Related Products

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
