Footing Ties


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

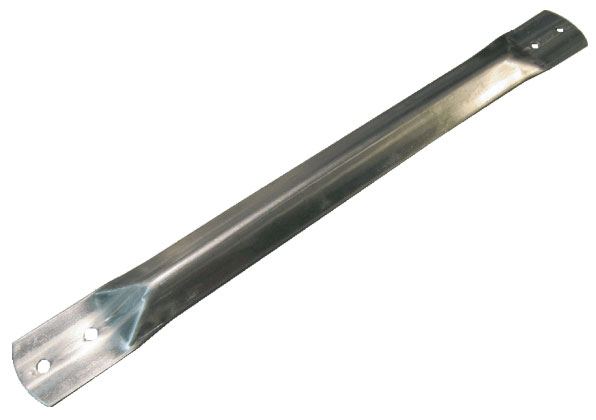

OCM, Inc's Footing Ties are used in forming footers or grade beams.

Features

  • Supports concrete forms from bowing or collapsing while concrete is being poured.
  • Available in 12 sizes.
OCM Part No. Length Bundle Qty Weight Per Piece lbs
FOOT06 6" 100 0.300
FOOT08 8" 100 0.383
FOOT10 10" 100 0.483
FOOT12 12" 100 0.550
FOOT14 14" 100 0.617
FOOT16 16" 100 0.633
FOOT18 18" 100  0.700
FOOT20 20" 100 0.800
FOOT24 24" 100 0.850
FOOT30 30" 100 0.967
FOOT36 36" 100 1.133
FOOT48 48" 100 1.567

Related Products

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
