Pencil Rod


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
Pencil Rod is a mild steel smooth rod. It is available in coils of approximately 600 feet (100lb. coils) or straightened and cut to length. Pencil Rod is used effectively on all types of forming requirements. Safe Working Load is 1,250 lbs for ¼” diameter pencil rod, 2,250 lbs for 3/8” diameter pencil rod, and 3,750 lbs for 1/2" diameter pencil rod based on 2:1 safety factor.

Features

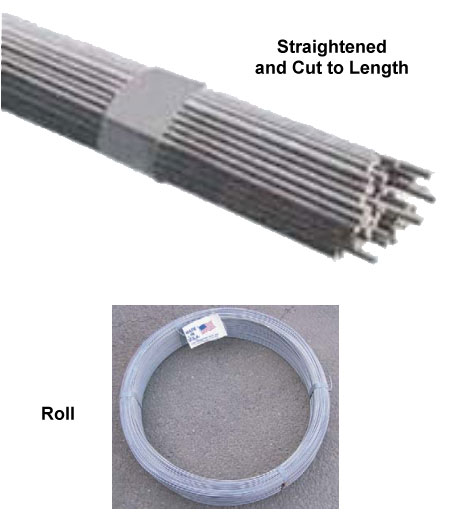

  • Can come in rolls or straightened and cut to length.
  • Compatible with all types of forming systems.
Straightened and Cut to Length
OCM Part No. Bundle
PR25-10 50
PR25-20 50



Roll
OCM Part No. Bundle
PR25-ROLL 50
