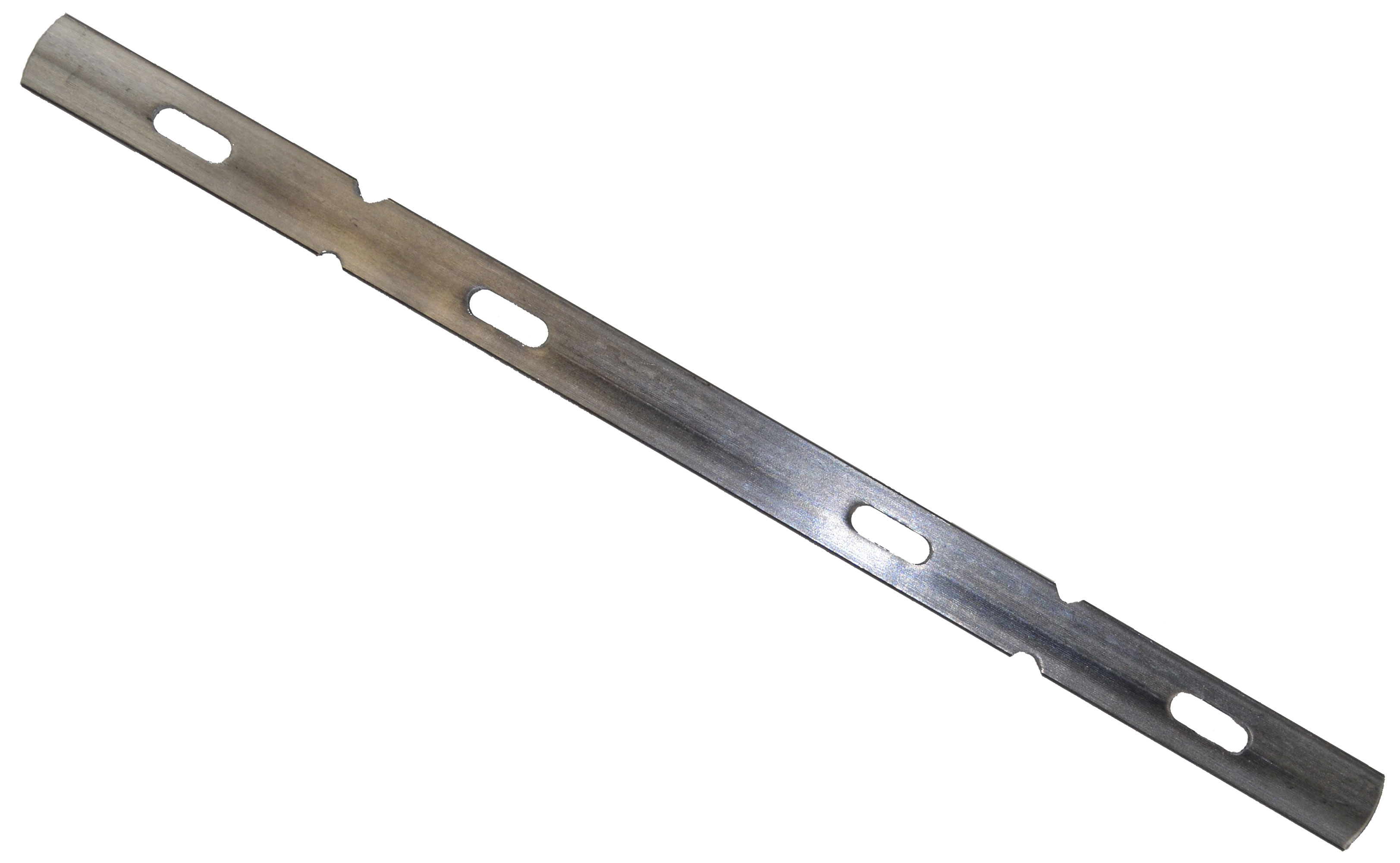

X-Flat Ties


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM, Inc's X-Flat Ties are to be used in most steel ply modular forming systems utilizing wedge bolts to secure form work.

Features

  • Available in 37 sizes.
  • Safe working load: 3,000 lbs.
OCM Part No. Wall Thickness Size Type Safe Working Load lbs
FT04SP 4" Standard 3,000
FT06SP 6" Standard 3,000
FT08SP 8" Standard 3,000
FT09SP 9" Standard 3,000
FT10SP 10" Standard 3,000
FT11SP 11" Standard 3,000
FT12SP 12" Standard 3,000
FT13SP 13" Standard 3,000
FT14SP 14" Standard 3,000
FT15SP 15" Standard 3,000
FT16SP 16" Standard 3,000
FT17SP 17" Standard 3,000
FT18SP 18" Standard 3,000
FT19SP 19" Standard 3,000
FT20SP 20" Standard 3,000
FT21SP 21" Standard 3,000
FT22SP 22" Standard 3,000
FT23SP 23" Standard 3,000
FT24SP 24" Standard 3,000
FT26SP 26" Standard 3,000
FT28SP 28" Standard 3,000
FT30SP 30" Standard 3,000
FT32SP 32" Standard 3,000
FT34SP 34" Standard 3,000
FT36SP 36" Standard 3,000
FT38SP 38" Standard 3,000
FT40SP 40" Standard 3,000
FT42SP 42" Standard 3,000
FT44SP 44" Standard 3,000
FT46SP 46" Standard 3,000
FT48SP 48" Standard 3,000
FT54SP 54" Standard 3,000
FT60SP 60" Standard 3,000
FT66SP 66" Standard 3,000
FT72SP 72" Standard 3,000
FT78SP 78" Standard 3,000
FT84SP 84" Standard 3,000
Comments: SWL provides a safety factor of approximately 2 to 1.
