Description

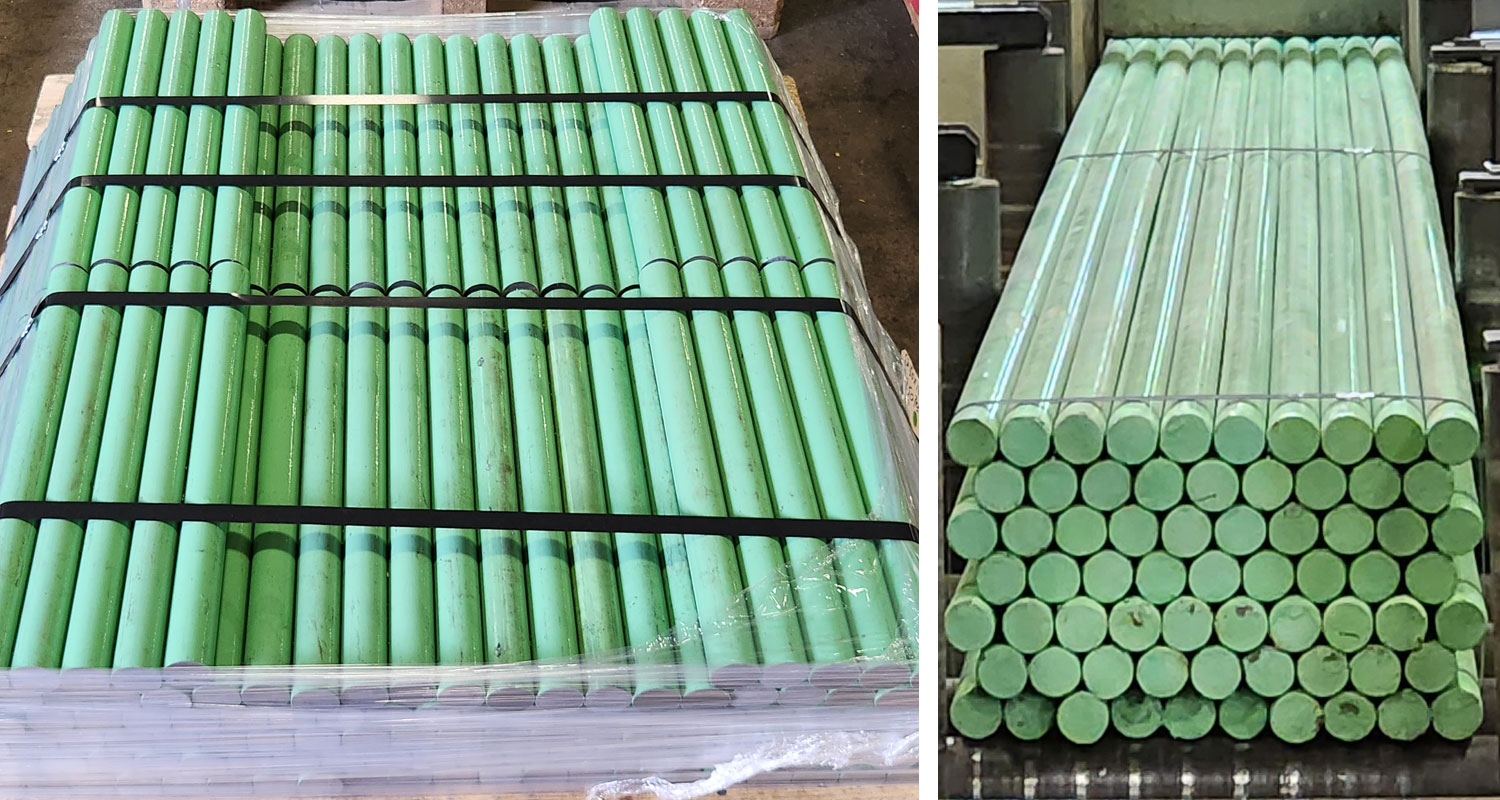

OCM, Inc's Epoxy Coated - Smooth Dowels allow for contraction and expansion of concrete due to moisture changes, while keeping the concrete from lifting. The epoxy coating helps to better protect the dowels from weather and moisture changes.
Features
- Long-lasting protective epoxy coating.
- Prevents concrete lifting.
- Made from high-strength steel. Meets ASTM A615 Grade 60.
- Available in varying lengths.
- Meets the following specifications: ASTM A775, ASTM A1078, ASTM A884, AASHTO M284, AASHTO M254.
| OCM Part No. | Description | Weight Per Piece lbs | Pallet Quantity |
|---|---|---|---|
| SD50X12E | SMOOTH DOWEL - 1/2" X 12" - EPOXY COATED | 0.67 | 2200 |
| SD50X18E | SMOOTH DOWEL - 1/2" X 18" - EPOXY COATED | 1 | 1500 |
| SD50X24E | SMOOTH DOWEL - 1/2" X 24" - EPOXY COATED | 1.34 | 1100 |
| SD625X18E | SMOOTH DOWEL - 5/8" X 18" - EPOXY COATED | 1.56 | 1000 |
| SD625X24E | SMOOTH DOWEL - 5/8" X 24" - EPOXY COATED | 2.09 | 800 |
| SD75X18E | SMOOTH DOWEL - 3/4" X 18" - EPOXY COATED | 2.25 | 1000 |
| SD75X24E | SMOOTH DOWEL - 3/4" X 24" - EPOXY COATED | 3.02 | 700 |
| SD100X18E | SMOOTH DOWEL - 1" X 18" - EPOXY COATED | 4.01 | 600 |
| SD100X24E | SMOOTH DOWEL - 1" X 24" - EPOXY COATED | 5.34 | 450 |
| SD125X18E | SMOOTH DOWEL - 1 1/4" X 18" - EPOXY COATED | 6.26 | 380 |
| SD125X24E | SMOOTH DOWEL - 1 1/4" X 24" - EPOXY COATED | 8.34 | 290 |
| SD150X18E | SMOOTH DOWEL - 1-1/2" X 18" - EPOXY COATED | 9.02 | 270 |
| SD150X24E | SMOOTH DOWEL - 1-1/2" X 24" - EPOXY COATED | 12.02 | 200 |
Comments: Epoxy dowels meet ASTM A775, ASTM A1078, ASTM A884, AASHTO M284, AASHTO M254 epoxy specifications.
