SBRACT-A90


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

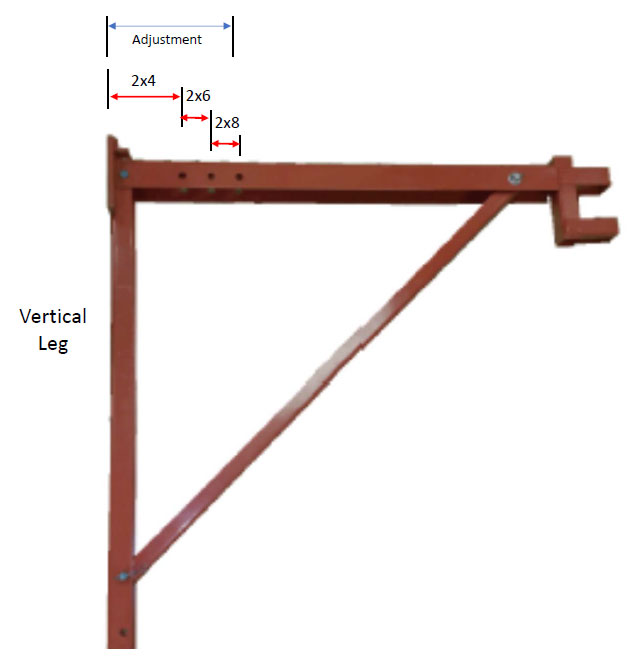

OCM SBRACT-A90 Scaffold Bracket supports scaffolding with many forming systems. OCM's Scaffold Bracket is easily adjusted to accommodate varying waler thicknesses by positioning the vertical leg on the horizontal channel.

Features

  • Scaffold Bracket meets state building codes and OSHA minimum requirements.
  • Accomodates 2x4, 2x6 or 2x8 Walers.
  • Brackets may be temporarily attached to a concrete wall by attaching the bracket to an exposed coil tie, insert or other appropriate device.
  • The bracket has a 1" diameter pipe coupling welded to the vertical leg which can be used in conjunction with a six inch long pipe nipple to attach the bracket to an exposed she-bolt inside rod.
  • SBRACT-A90 folds for easy storage and convenient shipping.
OCM Part No. Weight
SBRACT-A90 24.5 lbs
Comments: The SBRACT-A90 has an allowable load of 1000 lbs with a 4:1 safety factor. Spacing not to exceed 8 feet per OSHA requirements.
