Locking Wheel Spacer


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

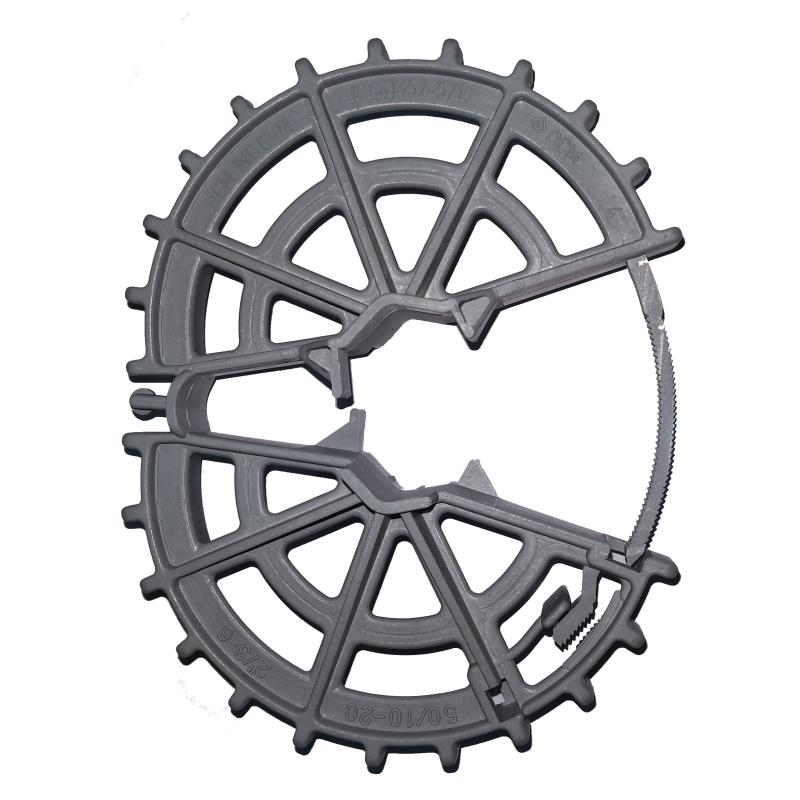

The OCM Locking Wheel Spacer is a polymer composite bar support used to maintain the position of rebar during placement and is typically used in lateral positioning applications. It can be used to position vertical rebar from the side forms.

Features

  • Very Strong and Durable Polymer Composite Rebar Support
  • Positive Tight Locking on to Rebar
  • Color is Matched to Concrete Color
  • Unique Patent Pending Locking Latch

Benefits

  • Lower quantity can be used, which can save time and money
  • Will stay attached to rebar during installation and during concrete pour
  • No footprint can be seen in finished concrete in exposed applications
  • Makes the strongest connection in the industry



OCM Part No. Size (Cover) Bar Size Box Qty
WSL-100 1" #4 1,000
WSL-150 1-1/2" #3 - #6 1,000
WSL-200 2" #3 - #7 500
WSL-300 3" #3 - #8 250
Comments: OCM Wheel Spacers meet CRSI Requirements

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
