Beam Bolster, Plastic Dipped/Tipped


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description
OCM Beam Bolster metal bar supports are used in commercial concrete projects to support reinforcing steel in elevated concrete decks, footings, slab on metal deck, bridge decks, pier caps, and other applications. Beam bolster is ideal for heavier rebar loads often in congested areas where deflection of the bar support cannot occur.

Features

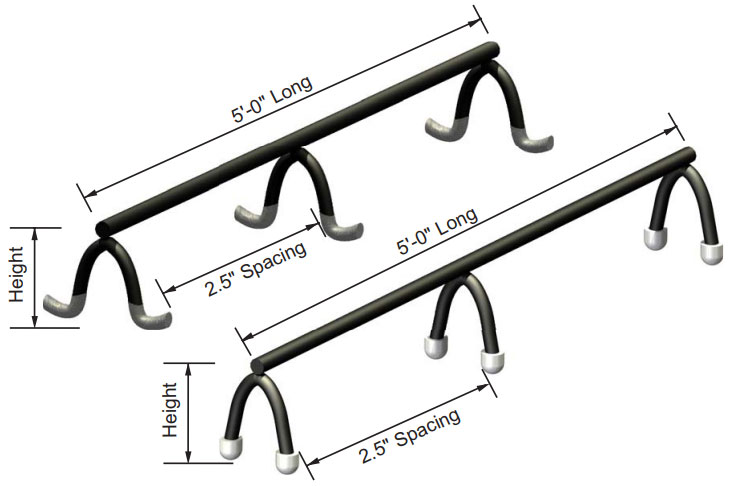

  • Available in heights ranging from 1" to 5" in 1/2" increments. Other sizes available by request.
  • Manufactured in 60" lengths.
  • Manufactured from wire conforming to ASTM A82/82M.
  • OCM Bar Supports meet CRSI Class 1 Standards and "Buy America".
OCM Part No.
Plastic Dipped Plastic Tipped Height Weight/LF lbs LF/Bundle
BB100-PD BB100-PT 1" 0.26 100
BB150-PD BB150-PT 1-1/2" 0.26 100
BB200-PD BB200-PT 2" 0.28 100
BB250-PD BB250-PT 2-1/2" 0.46 100
BB300-PD BB300-PT 3" 0.53 100
BB350-PD BB350-PT 3-1/2" 0.65 50
BB400-PD BB400-PT 4" 0.65 50
BB450-PD BB450-PT 4-1/2" 0.76 50
BB500-PD BB500-PT 5" 0.76 50
Available in 1/4" sizes.
Comments: Also Available in Galv Wire-Plastic Tipped and Epoxy-Plastic Dipped.
