Screed Chair Bases


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

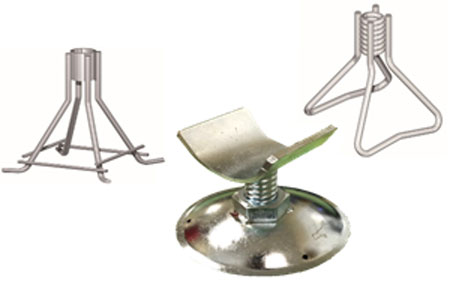

Screed Chair Bases are used with a pipe holder to hold screed pipe.

Features

  • 1-1/4" Available by Request
  • Free-Fit or Coil Thread Available
  • Bidwell Cup Style Available upon request
    1.) Includes 1"Coil Yoke that adjusts from 2-1/2" to 3 1/2"
    2.) Electrogalvanized for corrosion resitance
Dimensions  Cradle Head Adjustment Length Slab 1" Pipe Slab 1-1/2" Pipe  Suggested Work Load
Height Width   Min. Inches Max. Inches Min. Inches Max Inches
1" 2-3/4" 1" (3/4" Pipe Only) 2-1/4" 2-3/4" 2-1/4" 2-3/4" 900
1-1/2" 2-3/4" 1-1/2" 3" 3-1/2" 3-1/2" 4" 900
1-1/2" 2-3/4" 2-1/2" 3-3/4" 4-1/2" 4-1/4" 5" 900
2-1/2" 3-1/2" 3" 4-1/2" 6" 5" 6-1/2" 800
3-1/2" 4-1/2" 4" 5-1/2" 8" 6" 8-1/2" 900
4-1/2" 4-1/2" 4" 6-1/2" 9" 7" 9-1/2" 850
5-1/2" 4-1/2" 6" 7-1/2" 12" 8" 12-1/2" 800
7-1/2" 7-1/2" 8" 9-1/2" 16" 10" 16-1/2" 600
10" 7-1/2" 12" 13-1/2" 22-1/2" 14" 23" 500
Comments: Standard for 1/2" & 3/4". HD for 1" (includes 1 Coil Nut).
