Stud Rail Shear Reinforcement

Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

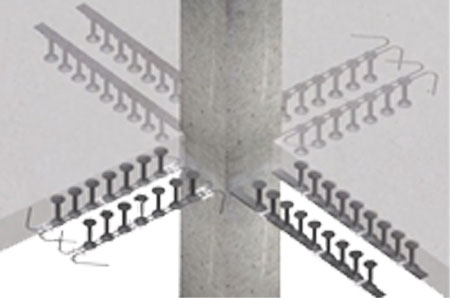

Stud Rail Shear Reinforcement is generally used in slab to column and footing connections to resist the punching shear in the slab and transfer the concentrated loads further into the slab to create a larger shear area around the column. (Avoid capital heads and drop heads around the column). Double Head Weld Studs available for bulk purchase


  • Top and bottom load transfer from the head is the same.
  • OCM Stud Rail Shear Reinforcement is manufactured at certified location in the USA.
  • Strip and wires are for positioning and spacing only and can be assembled at any location per design drawings.
  • No additional structural welding to strip or wire (no additional certified welding locations) .
  • Cost effective - less installation time, labor cost saving.
