BH25 45 Degree
Adj. Half Hanger


Technical Product Data Sheet

To save product sheet choose
"Save as PDF" option as printer destination.

Description

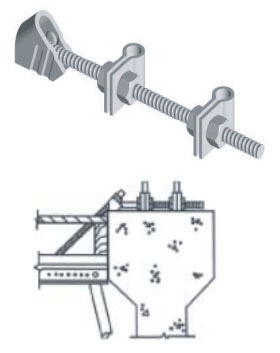

OCM BH25 Adjustable Half Hangers are designed to support the fascia overhang formwork on projects where welding is not permitted and rebar or headed stud shear connectors are available to connect the hanger to. The hanger consists of a 1/2" diameter End Clip welded to a length of 1/2" Coil Rod. One or two stirrup clips are positioned on the threaded rod and are retained by two coil nuts each. Standard unit is 9" overall with one stirrup clip. Minimum overall length is 6". Other lengths, additional clips and coil nuts are available upon request.

Features

  • Adjustable and flexible option where welding is permitted
  • SWL provides a Safety Factor of approximately 2:1
  • Availble in plain or galvanized
OCM Part No. Diameter Clips Safe Working Load lbs
BH25-1 1/2" 1 1,100
BH25-2 1/2" 2 3,000
Comments: Extra stirrup clips available upon request

OCM Limited Warranty

All recommendations, statements and technical data contained herein are based on tests we believe to be reliable and correct; however, accuracy and completeness of said tests are not guaranteed and are not provided as an express or implied warranty. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. In the event that a product supplied by OCM, Inc. proves to not meet the OCM, Inc. published dimensional or other specifications of the product, an OCM, Inc. representative will review such product and circumstances to determine whether a replacement is warranted. OCM, Inc.'s and its manufacturer's sole responsibility shall be to replace, at OCM, Inc.'s sole discretion that product or portion of the product which OCM, Inc. deems to be defective, within six months of the delivery of the product. OCM, Inc. disclaims all other warranties or conditions, whether express or implied, including an implied warranties of merchantability or fitness for any particular purpose. In no event shall OCM, Inc. or its parent or affiliated companies be liable for delay caused by defects, for loss of use, or for any indirect, incidental, special, or consequential damages or for any charges or expenses of any nature whatsoever. In no event shall OCM, Inc.'s liability exceed the purchase price paid for the particular affect OCM, Inc. products.
